Description
| Specification | |
|---|---|

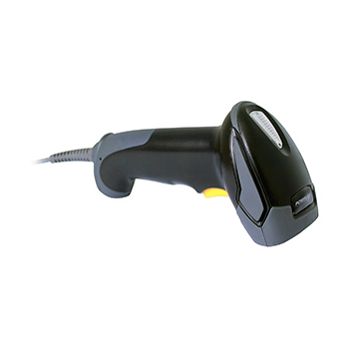

| Form Factor | Handheld 1D CCD Scanner |
| Light Source | Red light LED |
| Resolution | 0.075 mm/3 mil |
| Depth of Field | 20 mm – 500 mm |
| Scan Method | CMOS array sensor |
| Scan Angle | 45° |
| Scan Rate | 270 scan/sec |
| Decode Capability | Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Telepen. Option decodable: RSS-14, RSS Limited, RSS Expanded |
| Interface | USB (CD-3870U) or Serial (CD-3870R) |
| Dimension [W x D x H in mm] | 160 x 60 x 30 |
| Weight [N. W. in g] | 120 |
